The function of the Y-Tool is to provide access below a downhole ESP system by offsetting the ESP and providing straight line access to below the wireline, coiled tubing or other mechanical or hydraulic tools. For the purposes of running a production log, a special running tools is used and the blanking plug is removed. This enables real time logging and prevents re-circulation of produced fluids. Normally, 7 inch casing is the minimum casing size required to run both the ESP and the bypass tubing. (Novomet, link below, claims to provide bypass for 5 3/4" casing.) See our homepage for links to production logs (Flowing Trac III)

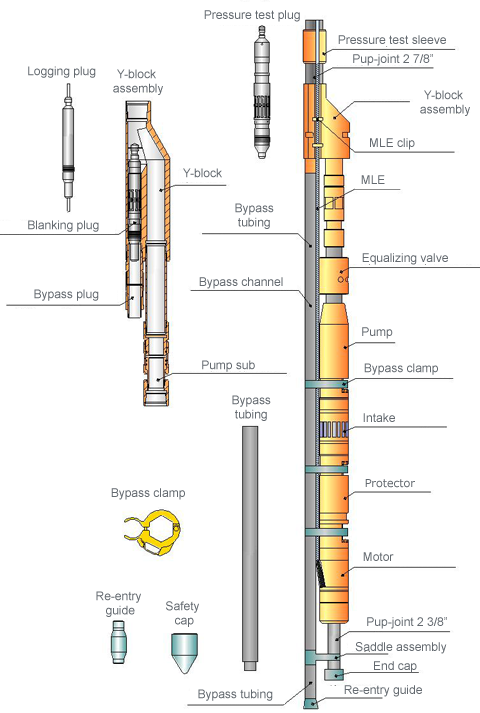

(Diagram courtesy Novomet)
MultiLift Y-Tool and accessories
Petro-Wiki Y-Tool or bypass description and SPE paper links
Penguin Bypass by RMSpumptools
RPS Pumptools - Bypass and accessories
Upstream Pumping - Magazine article (machining vs. casting)
ESP Completions Technology - Y Tool bypass system
HPOGC - Bypass systems and accessories
flowell - Bypass systems and accessories
Novomet - Bypass systems and accessories
NOV Varco - Bypass systems and accessories
Zenith - Bypass systems and accessories
Schlumberger - pdf brochure.
Cardinal Surveys Company makes no representation as to the effectiveness or applicability of the above referenced vendors and suppliers. This list is offered as a resource only.
